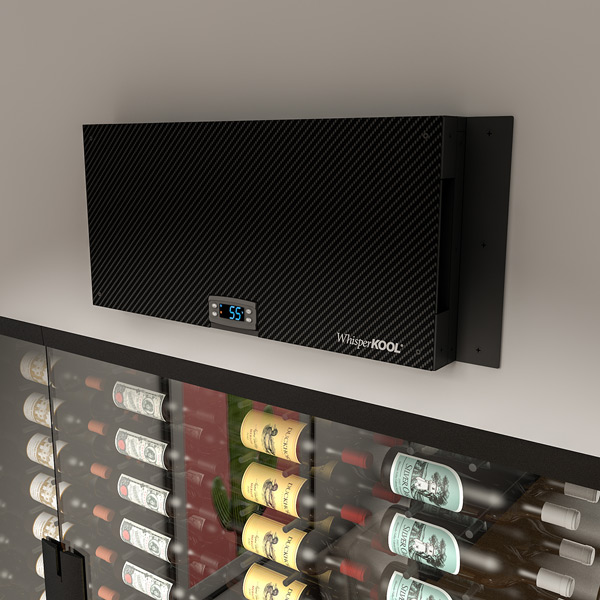

WhisperKool Slimline LS Product Description

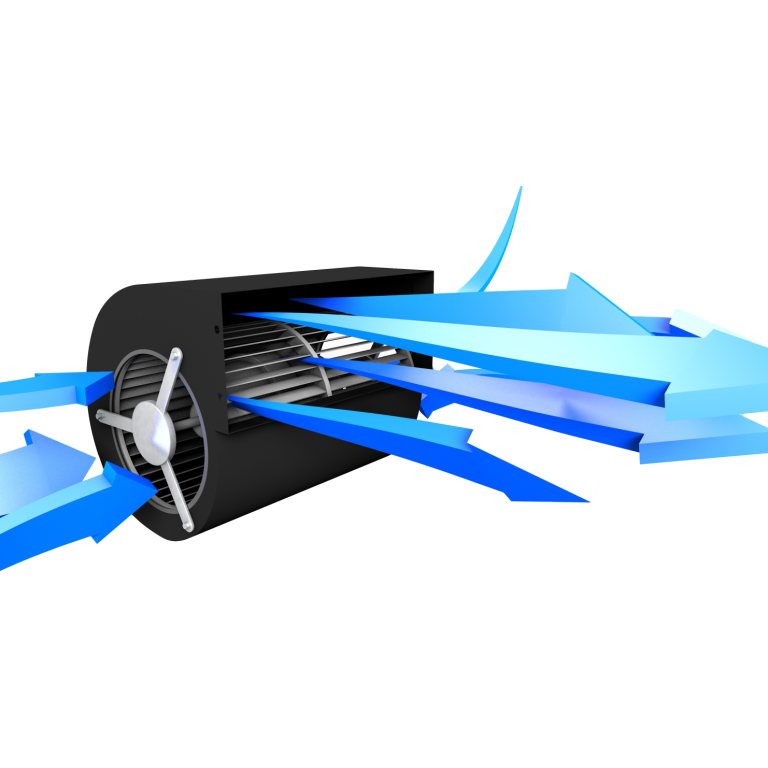

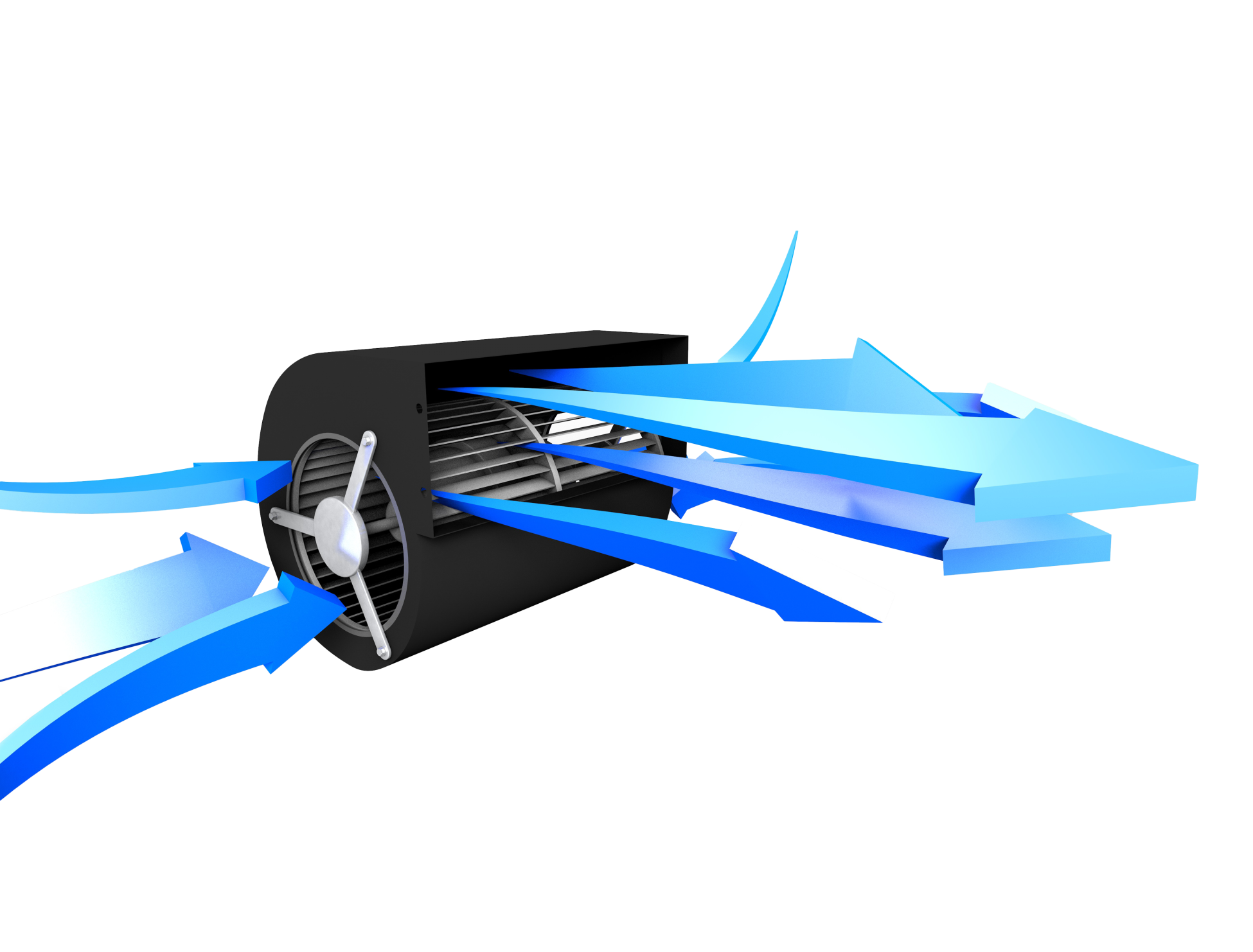

The new Whisperkool Slimline LS has evolved into a unit that can cool at two capacities at the flip of a switch. We have added centrifugal blowers, which are significantly quieter and can also be set at a medium or low speed, larger coils for greater system capacity, and an improved condensate management system. The controller has been moved to the condenser side of the unit for easy access. We offer a UV light upgrade to protect your unit from mold and an interchangeable decorative grille to customize the look of your luxury system.
Features & Benefits
- Through-the-wall installation
- Condensate Evaporator
- Two-speed fan switch
- Up to 45% more capacity
- UV light upgrade

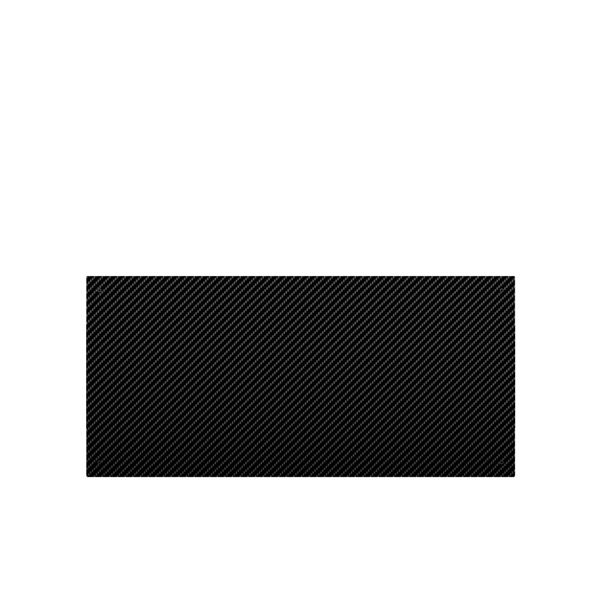

- Customizable front panel
- Quiet and efficient operation
- Advanced electronic display
- Liquid-temperature-measuring bottle probe
- Can be mounted in the often-unused space above a door
- 30°F temperature differential
Whisperkool Slimline LS Features
NOTE –
BTUh Rating
2396*
Please review all BTU specifications under the “Specifications” tab. The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Cellar Wizard
For more specific calculations, we have a tool which accounts for these variables. Please utilize this tool in order to ensure you are selecting the proper cooling unit for your application. Our tool is called the Cellar Wizard.
Specifications
Cellar Size: Approx. 300 cu. ft. (low fan speed) and 650 cu. ft. (medium fan speed) when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit)
BTU/h w/60°F air entering condenser coil: Low speed fan – 2601/1961 (total/sensible) Medium fan speed – 3032/2413 (total/sensible)
BTU/h w/75°F air entering condenser coil: Low speed fan – 2635/1951 (total/sensible) Medium fan speed – 2904/2309 (total/sensible)
BTU/h w/85°F air entering condenser coil: Low speed fan – 2396/1870 (total/sensible) Medium fan speed – 2612/2158 (total/sensible)
BTU/h w/95°F air entering condenser coil: Low speed fan – 2205/1704 (total/sensible) Medium fan speed – 2392/2008 (total/sensible)
Dimensions: 21.5”L x 22.16”W x 10.33”H
Refrigerant: R-134a
HP: 1/5
Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight: 81 lbs. without packaging, 90 lbs. with packaging
Amps: 4.3 (running amps)
Drain Line: 1/2” ID clear plastic tubing (not provided)
Installation: Through the wall (above a doorway)
Thermostat: Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta: Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
Outside Venting: Not recommended
Warranty Information
2 years parts and labor/5 years compressor
